**3cxmoskva** » Вс окт 14, 2018 9:34 am

Problem in printing plotter.

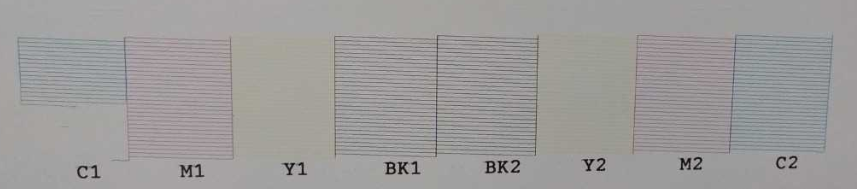

After cleaning pict 2 in atach.
Print head, ink dampers or pump ?

**oldman_lbt** » Вс окт 14, 2018 10:41 am

judging by the photo - the print head is clogged, cleaning did not help completely - clean more

**3cxmoskva** » Вс окт 14, 2018 12:31 pm

Oldman, do you have any nozzle check picture with pump-cap-wiper problems ?

For example full missing one color in nozzle check is problem,damper,pump,clogged PHead ?

How will I recognize pump problems ?

**oldman_lbt** » Вс окт 14, 2018 2:28 pm

except for manual testing of the pump - no way. almost any component giving such a failure can be to blame. there are no special diagnostic tools. run a couple of times to clean the print head, then print out 4 large areas filled in (4 colors) per sheet - if there was ink, then the strips are gone - this only means that the ink is not received in time. there may be a fault in the ink pump.

my english - google translate

**3cxmoskva** » Пт окт 19, 2018 8:53 am

Oldman,I dont understand your past sentences for testing pump " if there was ink...

Example: epson wf-5620, print head or pump,picture in atach

**oldman_lbt** » Пт окт 19, 2018 9:38 am

its a bad google translate.

if the printer prints well first, then the gaps go, then there is a problem with the ink supply to the print head
(google translate)

**aresson** » Пт окт 19, 2018 9:42 am

he meant "if the inks will be on the paper" or something like that :hi_hi_hi:

**3cxmoskva** » Пт окт 19, 2018 10:08 am

On wf-5620 cleaninig,cleaninig..not good nozzle check black ink on picture above. Print head or pump problem?

**oldman_lbt** » Пт окт 19, 2018 11:14 am

in order to understand who is guilty, you must first try to flush the print head - drip the washing liquid from above onto the nozzle for the black cartridge. if the liquid goes bad - flush the head. if the liquid goes well - look at the ink pumping system and the place where the head is parked.
and also - if you do not really understand what to do, look for information on the Internet in your own language - this is better than my explanation curves. Well, remember - there is always a risk in such matters of spoiling the printer - be careful.

**aresson** » Пт окт 19, 2018 1:47 pm

3cxmoskva писал(а):Print head or pump problem?

I think, the printhead is the cause of your problem. I saw a pump problem very-very rare

Epson SC-S30610
